Head-to-head card

The brief: Super Bowl week. The social team wants a "tale of the tape" card for the two teams: their regular seasons side by side, in each team's colors, with logos, at 1200 x 675 for X and 1080 x 1080 for Instagram. The numbers come from nflverse play-by-play and schedules through sportsdataverse.nfl.

import tempfile
from pathlib import Path

import matplotlib.pyplot as plt
import polars as pl
import sportsdataverse.nfl as nfl
from IPython.display import Image
from PIL import Image as PILImage

import sdvplot

SEASON = 2025
OUT = Path(tempfile.mkdtemp(prefix="sdvplot-recipe-"))  # where the exports go; use your own folder

1. Get the data

Every stat is computed for all 32 teams, not just the two finalists, because a comparison needs context: each one also gets a league rank (1 is best, whichever direction "best" is for that stat). Points come from the schedule, efficiency and turnovers from the play-by-play.

schedule = nfl.load_nfl_schedule([SEASON])
sb = schedule.filter(pl.col("game_type") == "SB").row(0, named=True)
regular = schedule.filter(pl.col("game_type") == "REG")
sides = pl.concat(
    [
        regular.select(team="home_team", pf="home_score", pa="away_score"),
        regular.select(team="away_team", pf="away_score", pa="home_score"),
    ]
)
scoring = sides.group_by("team").agg(
    w=(pl.col("pf") > pl.col("pa")).sum(),
    l=(pl.col("pf") < pl.col("pa")).sum(),
    ppg=pl.col("pf").mean(),
    papg=pl.col("pa").mean(),
)

pbp = nfl.load_nfl_pbp([SEASON]).filter(pl.col("season_type") == "REG", pl.col("epa").is_not_null())
plays = pbp.filter(pl.col("play_type").is_in(["pass", "run"]))
offense = plays.group_by("posteam").agg(
    off_epa=pl.col("epa").mean(),
    pass_epa=pl.col("epa").filter(pl.col("pass") == 1).mean(),
    rush_epa=pl.col("epa").filter(pl.col("rush") == 1).mean(),
    giveaways=(pl.col("interception") + pl.col("fumble_lost")).sum(),
)
defense = plays.group_by("defteam").agg(
    def_epa=pl.col("epa").mean(), takeaways=(pl.col("interception") + pl.col("fumble_lost")).sum()
)
teams = (
    scoring.join(offense, left_on="team", right_on="posteam")
    .join(defense, left_on="team", right_on="defteam")
    .with_columns(to_margin=(pl.col("takeaways") - pl.col("giveaways")).cast(pl.Int64))
)

# (column, label, number format, True when bigger is better)
STATS = [
    ("ppg", "Points per game", "{:.1f}", True),
    ("papg", "Points allowed per game", "{:.1f}", False),
    ("off_epa", "Offense EPA per play", "{:+.3f}", True),
    ("def_epa", "Defense EPA per play allowed", "{:+.3f}", False),
    ("pass_epa", "EPA per dropback", "{:+.3f}", True),
    ("rush_epa", "EPA per rush", "{:+.3f}", True),
    ("to_margin", "Turnover margin", "{:+d}", True),
]
teams = teams.with_columns(
    pl.col(col).rank("min", descending=better).cast(pl.Int64).alias(f"{col}_rank") for col, _, _, better in STATS
)
pair = [sb["home_team"], sb["away_team"]]
teams.filter(pl.col("team").is_in(pair)).sort("team").select("team", "w", "l", *[c for c, *_ in STATS])

team	w	l	ppg	papg	off_epa	def_epa	pass_epa	rush_epa	to_margin
NE	14	3	28.823529	18.823529	0.159207	-0.047123	0.305703	-0.063989	2
SEA	14	3	28.411765	17.176471	0.032795	-0.115932	0.122813	-0.065733	0

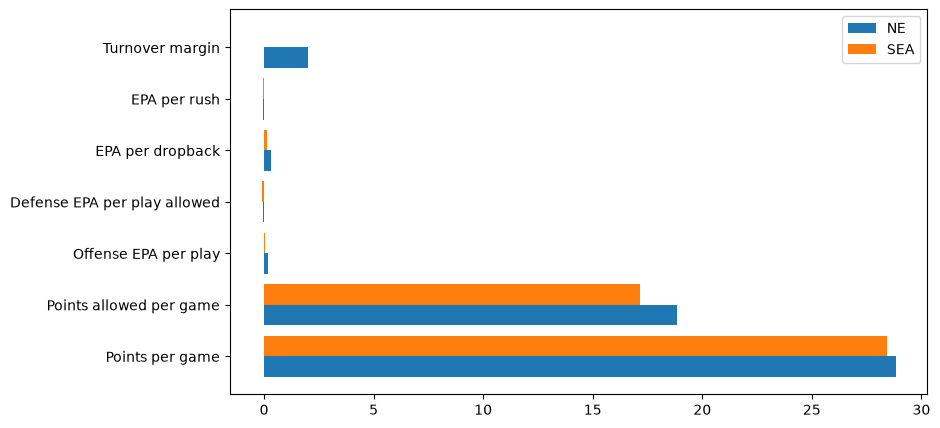

2. The first draft

Both teams' numbers as grouped bars.

two = teams.filter(pl.col("team").is_in(pair)).sort("team")
labels = [label for _, label, _, _ in STATS]
fig, ax = plt.subplots(figsize=(9, 5))
for i, row in enumerate(two.iter_rows(named=True)):
    ax.barh([y + 0.4 * i for y in range(len(STATS))], [row[c] for c, *_ in STATS], height=0.4, label=row["team"])
ax.set_yticks([y + 0.2 for y in range(len(STATS))], labels)
ax.legend()
plt.show()

png

Useless: points per game (about 25) dwarf EPA per play (about 0.1), "more" is good for some rows and bad for others, and the default blue and orange belong to neither team.

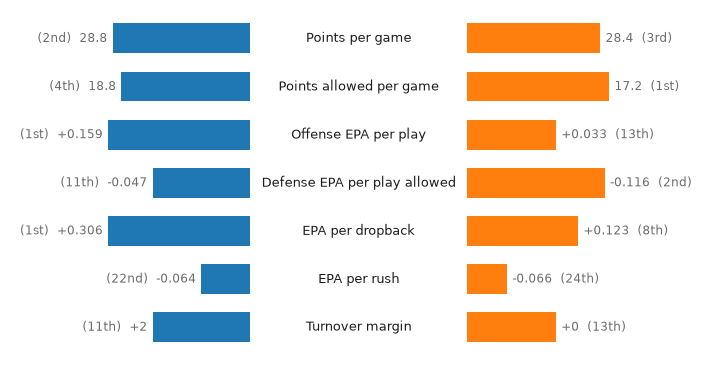

3. One scale: league rank

Ranks put every stat on the same 1-32 scale with the same direction, so a longer bar is always better. Mirroring the two teams around a center column of labels (a "butterfly") makes each row a direct comparison; the actual value and the rank sit at the end of each bar.

def ordinal(n):
    return f"{n}{'th' if 10 <= n % 100 <= 20 else {1: 'st', 2: 'nd', 3: 'rd'}.get(n % 10, 'th')}"


def butterfly(ax, colors, ink="#1d1d1d", muted="#6b6b6b"):
    """Mirrored rank bars: the first team grows left from the center labels, the second right."""
    rows = {row["team"]: row for row in teams.filter(pl.col("team").is_in(pair)).iter_rows(named=True)}
    gap = 0.42  # half the width of the label column, in axes units
    for y, (col, label, fmt, _) in enumerate(STATS):
        ax.text(0, y, label, ha="center", va="center", fontsize=9, color=ink)
        for side, team in zip((-1, 1), pair, strict=True):
            rank = rows[team][f"{col}_rank"]
            length = (33 - rank) / 32 * 0.55  # rank 1 is the longest bar
            start = side * gap
            ax.barh(y, side * length, left=start, height=0.62, color=colors[team])
            ax.text(
                start + side * (length + 0.02),
                y,
                f"{fmt.format(rows[team][col])}  ({ordinal(rank)})"
                if side > 0
                else f"({ordinal(rank)})  {fmt.format(rows[team][col])}",
                ha="left" if side > 0 else "right",
                va="center",
                fontsize=8.5,
                color=muted,
            )
    ax.set_xlim(-1.35, 1.35)
    ax.set_ylim(len(STATS) - 0.4, -0.6)
    ax.axis("off")


fig, ax = plt.subplots(figsize=(9, 4.5))
butterfly(ax, {pair[0]: "#1f77b4", pair[1]: "#ff7f0e"})
plt.show()

png

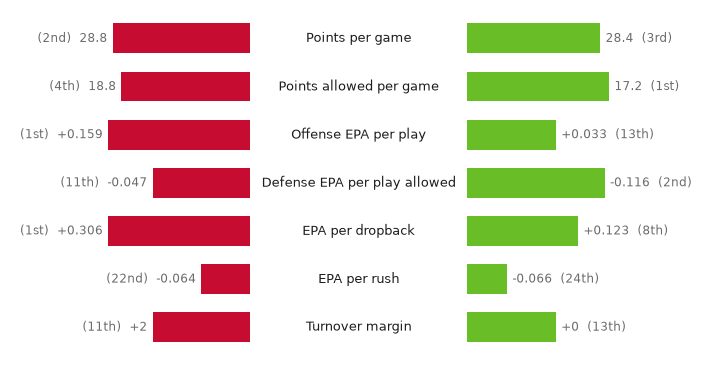

4. The teams' own colors

Swapping matplotlib's defaults for team colors runs into a real-world snag: both teams' primary color is the same navy (#002244), so the card would be one color on both sides. Each team's secondary color, Seattle's action green and New England's red, tells them apart.

primary = dict(zip(pair, sdvplot.team_colors(pair, "nfl"), strict=True))
secondary = dict(zip(pair, sdvplot.team_colors(pair, "nfl", which="secondary"), strict=True))
print("primary:", primary, " secondary:", secondary)
colors = secondary if len(set(primary.values())) == 1 else primary

fig, ax = plt.subplots(figsize=(9, 4.5))
butterfly(ax, colors)
plt.show()

primary: {'NE': '#002244', 'SEA': '#002244'}  secondary: {'NE': '#c60c30', 'SEA': '#69be28'}

png

5. Make it a card

The card is dark, which most game-week graphics are, so the logos use the "dark" variant (the mark drawn for a dark background, which keeps navy outlines from disappearing). Each team gets its logo and record above its side, the kicker names the game, and the footer the source. Positions are in inches from the edges, so one function draws both export sizes.

BG, INK, MUTED = "#0f1923", "#ffffff", "#9fb0c3"
rows = {row["team"]: row for row in teams.filter(pl.col("team").is_in(pair)).iter_rows(named=True)}
names = dict(sdvplot.teams("nfl").select("abbr", "short_name").iter_rows())


def card(figsize, dpi=100):
    w, h = figsize
    fig = plt.figure(figsize=figsize, dpi=dpi, facecolor=BG)
    header = 1.55  # inches for kicker, logos and records
    ax = fig.add_axes((0.3 / w, 0.45 / h, 1 - 0.6 / w, 1 - (header + 0.55) / h), facecolor=BG)
    butterfly(ax, colors, ink=INK, muted=MUTED)

    top = fig.add_axes((0, 1 - header / h, 1, header / h), facecolor=BG)
    top.set(xlim=(0, w), ylim=(0, header))
    top.axis("off")
    for x, team in zip((w * 0.2, w * 0.8), pair, strict=True):
        sdvplot.add_logos(top, [x], [header - 0.62], [team], league="nfl", season=SEASON, variant="dark", height=0.62)
        top.text(
            x,
            0.2,
            f"{names[team]}  {rows[team]['w']}-{rows[team]['l']}",
            ha="center",
            fontsize=11,
            fontweight="bold",
            color=colors[team],
        )
    top.text(w / 2, header - 0.38, "SUPER BOWL LX", ha="center", fontsize=9, fontweight="bold", color=MUTED)
    top.text(w / 2, header - 0.75, "Tale of the tape", ha="center", fontsize=16, fontweight="bold", color=INK)
    top.text(
        w / 2, header - 1.05, f"{SEASON} regular season, rank among 32 teams", ha="center", fontsize=8.5, color=MUTED
    )
    fig.text(
        0.5,
        0.12 / h,
        "Data: nflverse via sportsdataverse-py  |  made with sdvplot",
        ha="center",
        fontsize=7.5,
        color=MUTED,
    )
    return fig


fig = card((8, 4.5))
plt.show()

png

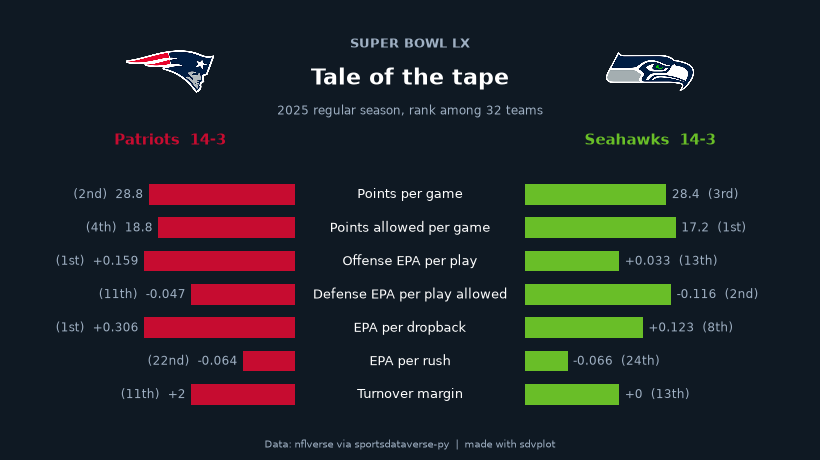

6. Export for X and Instagram

The same function draws both posts: 8 x 4.5 in and 7.2 x 7.2 in at 150 dpi are exactly 1200 x 675 and 1080 x 1080. savefig needs the card's background passed again, or the margins come out white.

for name, size in {
    "sb_tale_of_the_tape_1200x675.png": (8, 4.5),
    "sb_tale_of_the_tape_1080x1080.png": (7.2, 7.2),
}.items():
    fig = card(size, dpi=150)
    fig.savefig(OUT / name, dpi=150, facecolor=BG)
    plt.close(fig)
    print(name, PILImage.open(OUT / name).size)
Image(OUT / "sb_tale_of_the_tape_1200x675.png")



png

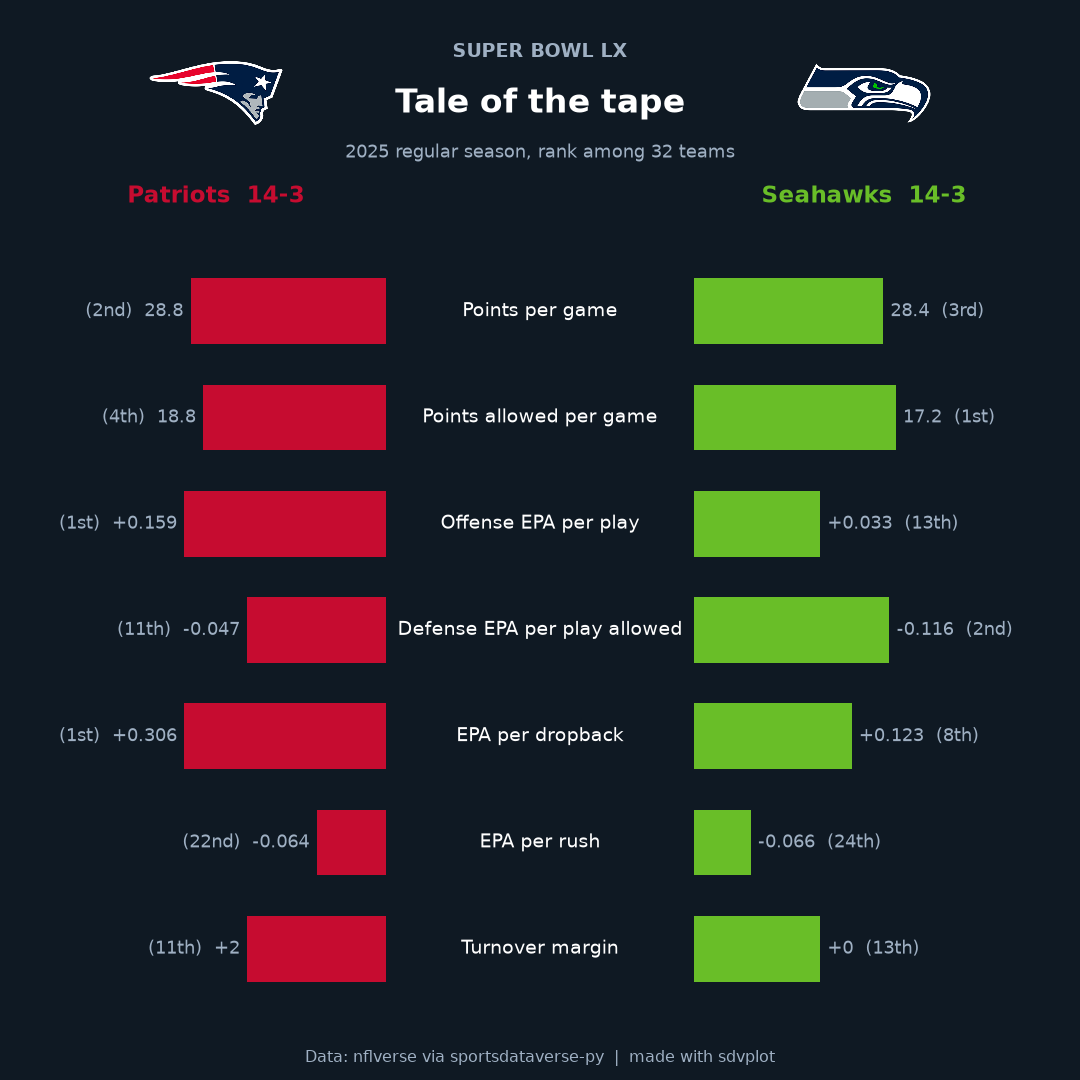

The square cut:

Image(OUT / "sb_tale_of_the_tape_1080x1080.png", width=540)

png

Run it yourself

Download the notebook (outputs cleared) or open it on GitHub.
