NFL EPA scatter

The brief: the week after the Super Bowl, the social team wants the season's offense-vs-defense chart for X and Bluesky (1200 x 675) and Instagram (1080 x 1080), and it should say something about the two teams that just played. This is the chart every NFL analyst makes: each team's offensive EPA per play against the EPA per play its defense allowed, with logos for points. The data is nflverse play-by-play through sportsdataverse.nfl.

import tempfile
from pathlib import Path

import matplotlib.pyplot as plt
import polars as pl
import sportsdataverse.nfl as nfl
from IPython.display import Image

import sdvplot

SEASON = 2025
OUT = Path(tempfile.mkdtemp(prefix="sdvplot-recipe-"))  # where the exports go; use your own folder

1. Get the data

One season of play-by-play, cut to regular-season runs and passes with an EPA value, then averaged twice: by the team with the ball and by the team on defense. The Super Bowl comes from the schedule, so the chart can point at it.

pbp = nfl.load_nfl_pbp([SEASON])
plays = pbp.filter(
    pl.col("season_type") == "REG",
    pl.col("play_type").is_in(["pass", "run"]),
    pl.col("epa").is_not_null(),
)
offense = plays.group_by("posteam").agg(off_epa=pl.col("epa").mean(), plays=pl.len())
defense = plays.group_by("defteam").agg(def_epa=pl.col("epa").mean())
assert offense.schema["posteam"] == defense.schema["defteam"]  # one dtype on both sides of the join key
teams = (
    offense.join(defense, left_on="posteam", right_on="defteam")
    .rename({"posteam": "team"})
    .with_columns(
        off_rank=pl.col("off_epa").rank(descending=True).cast(pl.Int64),
        def_rank=pl.col("def_epa").rank().cast(pl.Int64),  # less EPA allowed is better
    )
    .sort("team")  # group_by returns groups in any order; sort so the logos draw in the same order every run
)

sb = nfl.load_nfl_schedule([SEASON]).filter(pl.col("game_type") == "SB").row(0, named=True)
winner, loser = (
    (sb["home_team"], sb["away_team"]) if sb["home_score"] > sb["away_score"] else (sb["away_team"], sb["home_team"])
)
print(f"Super Bowl: {sb['away_team']} {sb['away_score']}, {sb['home_team']} {sb['home_score']}")
teams.filter(pl.col("team").is_in([winner, loser]))

Super Bowl: SEA 29, NE 13

team	off_epa	plays	def_epa	off_rank	def_rank
NE	0.159207	1017	-0.047123	1	11
SEA	0.032795	997	-0.115932	13	2

The champion had the No. 2 defense and the runner-up the No. 1 offense: that is the story the chart should tell.

2. The first draft

Thirty-two dots and their abbreviations, the five-minute version.

fig, ax = plt.subplots(figsize=(9, 6))
ax.scatter(teams["off_epa"], teams["def_epa"])
for row in teams.iter_rows(named=True):
    ax.annotate(row["team"], (row["off_epa"], row["def_epa"]), fontsize=8)
ax.set(xlabel="Offense EPA/play", ylabel="Defense EPA/play")
plt.show()

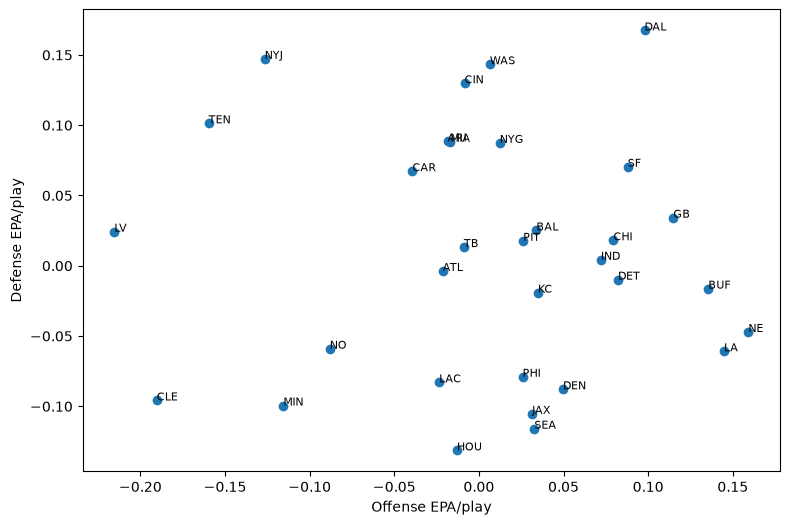

It is all there, but it does not read: labels collide in the middle of the pack, a reader has to work out that low is good on the y axis, and nothing says what the chart is about.

3. Logos for points

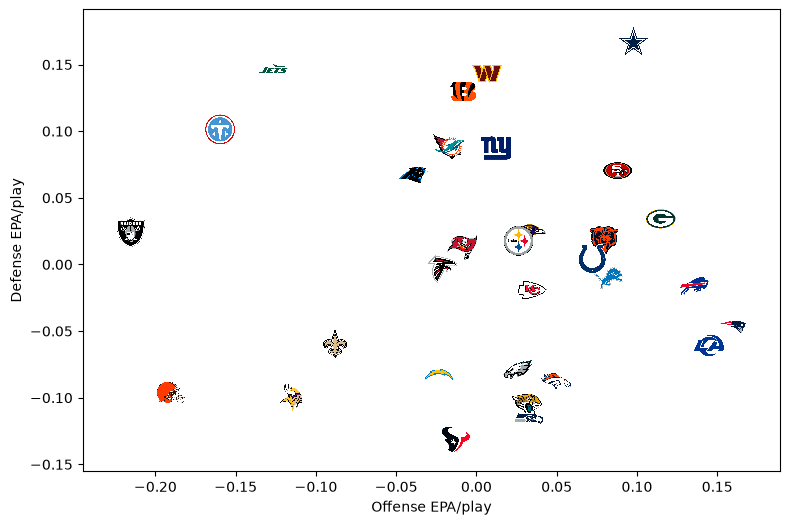

add_logos puts each team's logo on its point; the abbreviations from nflverse resolve as they are. An invisible scatter (s=0) still sets the axis limits, and margins leaves room so no logo at the edge is clipped. height is a fraction of the axes height, so the logos keep their size when the figure is resized or saved at another dpi.

fig, ax = plt.subplots(figsize=(9, 6))
ax.scatter(teams["off_epa"], teams["def_epa"], s=0)
ax.margins(0.08)
sdvplot.add_logos(ax, teams["off_epa"], teams["def_epa"], teams["team"], league="nfl", season=SEASON, height=0.07)
ax.set(xlabel="Offense EPA/play", ylabel="Defense EPA/play")
plt.show()

4. Point the axes the same way

Readers expect "up and to the right" to be good. Flipping the y axis puts the best defenses on top; dashed league-average lines and a label in each corner turn the scatter into four quadrants anyone can read.

def quadrants(ax):
    """League-average lines and a label in each corner of a flipped-defense EPA chart."""
    ax.axvline(teams["off_epa"].mean(), color="#9a9a9a", lw=0.8, ls="--", zorder=1)
    ax.axhline(teams["def_epa"].mean(), color="#9a9a9a", lw=0.8, ls="--", zorder=1)
    corners = {
        (0.99, 0.99): "Good offense, good defense",
        (0.01, 0.99): "Bad offense, good defense",
        (0.99, 0.01): "Good offense, bad defense",
        (0.01, 0.01): "Bad offense, bad defense",
    }
    for (x, y), label in corners.items():
        ax.text(
            x,
            y,
            label,
            transform=ax.transAxes,
            fontsize=9,
            color="#8a8a8a",
            style="italic",
            ha="right" if x > 0.5 else "left",
            va="top" if y > 0.5 else "bottom",
        )


fig, ax = plt.subplots(figsize=(9, 6))
ax.scatter(teams["off_epa"], teams["def_epa"], s=0)
ax.margins(0.08)
ax.invert_yaxis()
quadrants(ax)
sdvplot.add_logos(ax, teams["off_epa"], teams["def_epa"], teams["team"], league="nfl", season=SEASON, height=0.07)
ax.set(xlabel="Offense EPA per play", ylabel="Defense EPA per play allowed")
plt.show()

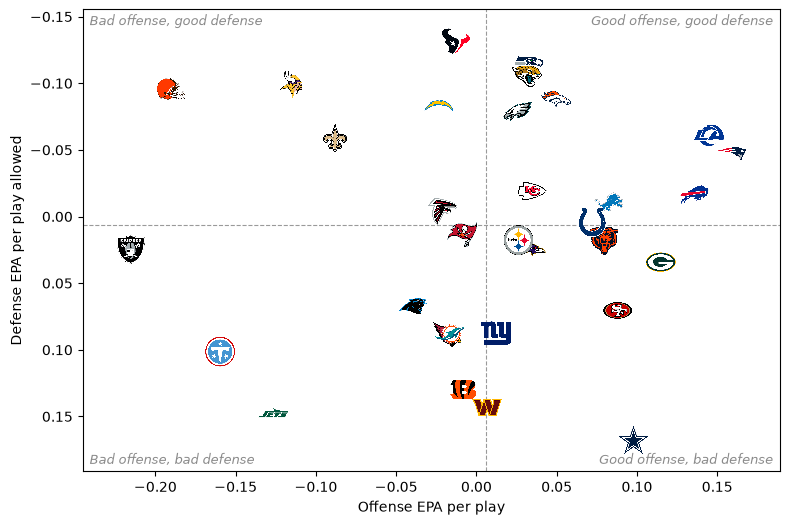

Seattle is half buried: its numbers are almost the same as Jacksonville's, and the Jaguars logo covers it. That is the team the chart is about, so the next step has to fix it.

5. Tell the story

Now make it about the Super Bowl. The other 30 logos fade (alpha), the two finalists are drawn last, a little larger, with a callout each, which also lifts Seattle out from under Jacksonville. The title states the finding instead of describing the axes, the subtitle carries the definitions and the caption the source.

Everything goes in one function of the figure size, ready for the exports. Font sizes are in points, so a smaller canvas fits fewer characters per line: the title and subtitle wrap to the width, and the margins are set in inches so the tick labels never collide with the edge.

import textwrap

GREY = "#6b6b6b"
TITLE = "Super Bowl LX matched the best offense against the No. 2 defense"
SUBTITLE = f"EPA per play on runs and passes, {SEASON} regular season. Defense axis flipped: up and right is better."
CALLOUTS = {  # where each finalist's label sits, in points from its logo
    winner: dict(xytext=(24, 4), ha="left", va="center"),
    loser: dict(xytext=(16, 22), ha="right", va="bottom"),
}


def epa_chart(figsize, dpi=100, logo_height=0.075):
    w, h = figsize
    title = textwrap.fill(TITLE, int(w * 8.2))  # about 8 characters per inch at 14 pt bold
    subtitle = textwrap.fill(SUBTITLE, int(w * 14))
    top = 0.25 + 0.26 * title.count("\n") + 0.22 + 0.18 * (subtitle.count("\n") + 1) + 0.35  # inches

    fig = plt.figure(figsize=figsize, dpi=dpi)
    ax = fig.add_axes((0.8 / w, 0.75 / h, 1 - 1.05 / w, 1 - (0.75 + top) / h))
    ax.scatter(teams["off_epa"], teams["def_epa"], s=0)
    ax.margins(x=0.06, y=0.14)  # headroom for the corner labels and the callouts
    ax.invert_yaxis()
    quadrants(ax)

    finalists = teams.filter(pl.col("team").is_in([winner, loser]))
    others = teams.filter(~pl.col("team").is_in([winner, loser]))
    sdvplot.add_logos(
        ax,
        others["off_epa"],
        others["def_epa"],
        others["team"],
        league="nfl",
        season=SEASON,
        height=logo_height,
        alpha=0.3,
    )
    sdvplot.add_logos(
        ax,
        finalists["off_epa"],
        finalists["def_epa"],
        finalists["team"],
        league="nfl",
        season=SEASON,
        height=logo_height * 1.3,
        zorder=5,
    )
    for row in finalists.iter_rows(named=True):
        note = (
            f"Champion\nNo. {row['def_rank']} defense"
            if row["team"] == winner
            else f"Runner-up\nNo. {row['off_rank']} offense"
        )
        ax.annotate(
            note,
            (row["off_epa"], row["def_epa"]),
            textcoords="offset points",
            fontsize=9,
            fontweight="bold",
            color=sdvplot.team_colors(row["team"], "nfl"),
            linespacing=1.1,
            **CALLOUTS[row["team"]],
        )

    ax.set_xlabel("Offense EPA per play", color=GREY)
    ax.set_ylabel("Defense EPA per play allowed", color=GREY)
    ax.tick_params(colors=GREY, labelsize=8)
    ax.spines[["top", "right"]].set_visible(False)
    ax.spines[["left", "bottom"]].set_color("#cccccc")

    fig.text(0.25 / w, 1 - 0.25 / h, title, fontsize=14, fontweight="bold", va="top", linespacing=1.15)
    fig.text(0.25 / w, 1 - (0.25 + 0.26 * title.count("\n") + 0.33) / h, subtitle, fontsize=9.5, color=GREY, va="top")
    fig.text(
        1 - 0.2 / w,
        0.12 / h,
        "Data: nflverse via sportsdataverse-py  |  Chart: sdvplot",
        fontsize=8,
        color=GREY,
        ha="right",
    )
    return fig


fig = epa_chart((9, 5.6))
plt.show()

6. Export at social sizes

Social sites resize whatever they get, so export at the size they show: 1200 x 675 for X and Bluesky, 1080 x 1080 for Instagram. Inches times dpi gives the pixels; skip bbox_inches="tight", which trims the canvas and breaks the exact size. The square's axes are taller, so the same height fraction would make bigger logos; it gets a smaller one.

from PIL import Image as PILImage

files = {
    "nfl_epa_1200x675.png": epa_chart((8, 4.5), dpi=150),
    "nfl_epa_1080x1080.png": epa_chart((7.2, 7.2), dpi=150, logo_height=0.06),
}
for name, fig in files.items():
    fig.savefig(OUT / name, dpi=150, facecolor="white")
    plt.close(fig)
    print(name, PILImage.open(OUT / name).size)

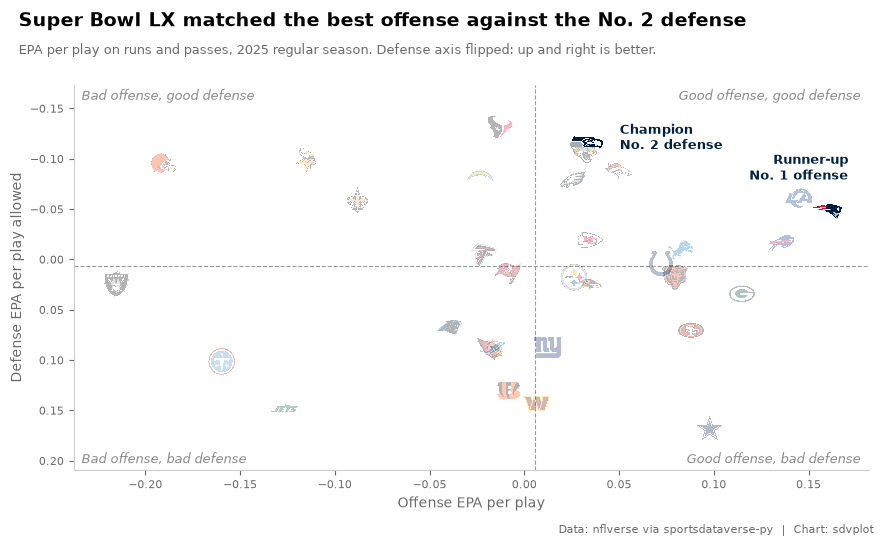

Image(OUT / "nfl_epa_1200x675.png")

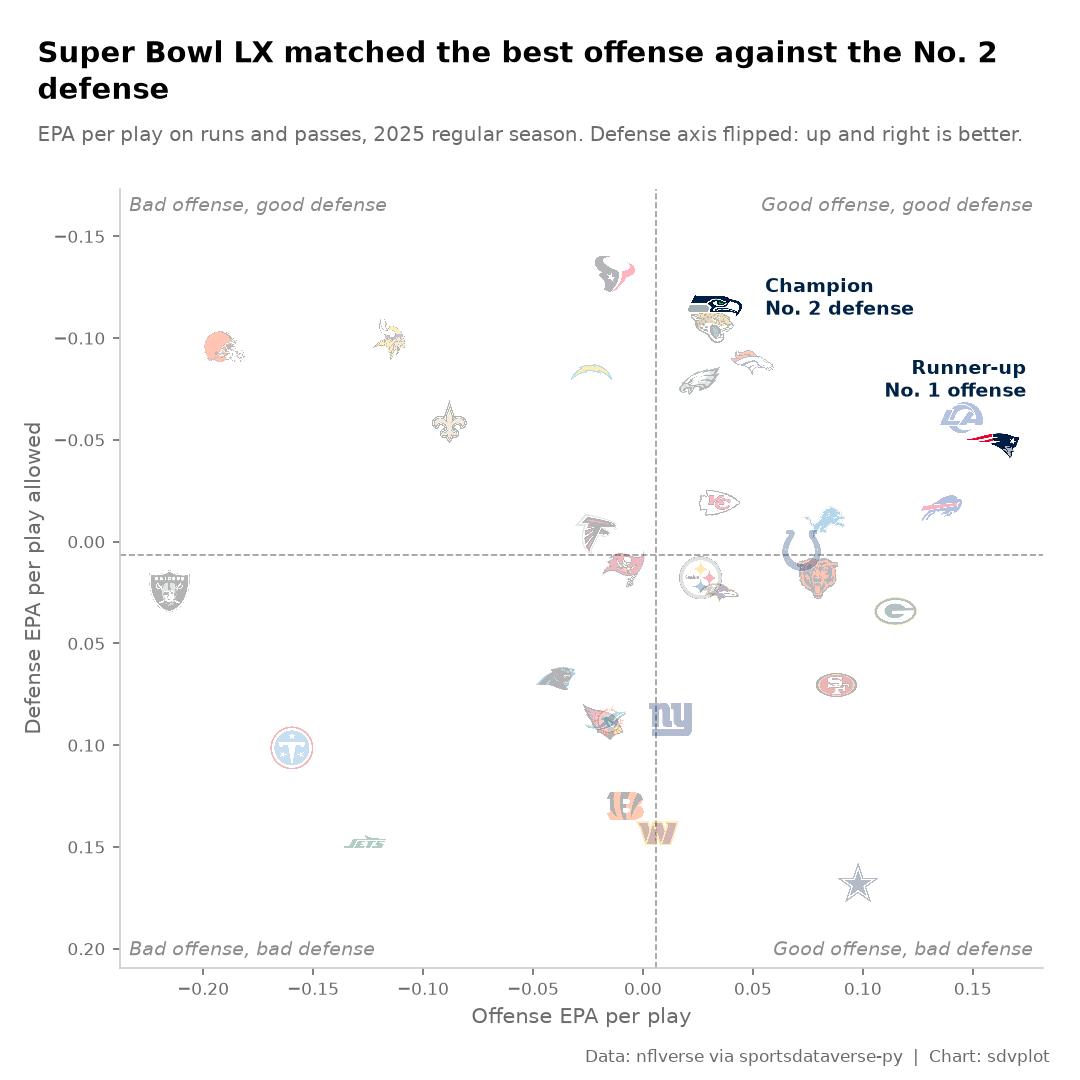

The square cut, from the same function:

Image(OUT / "nfl_epa_1080x1080.png", width=540)
